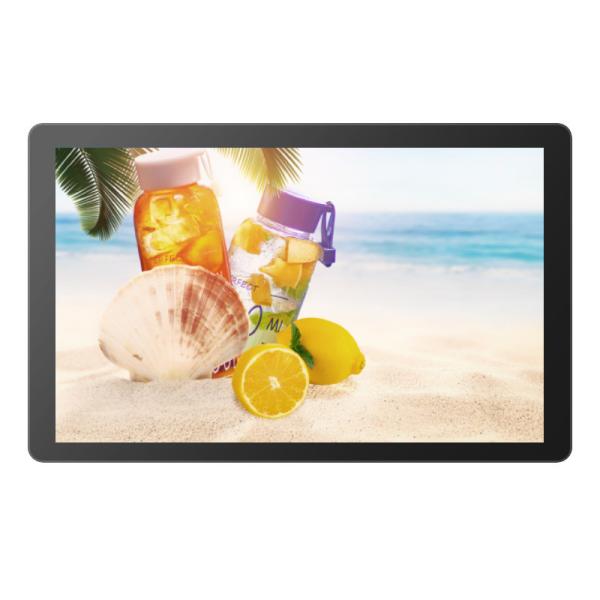

32 Inch High Brightness Touch Monitor 16:9 Ratio Anti-Vandal Anti-Glare
Description of High Brightness Touch Monitor
This 32 inch high brightness touch monitor delivers high durability, accuracy and multi-touch support, which can be used normally in very harsh environments. The high brightness touch monitor is a type of display that is designed to produce brighter and clearer images compared to traditional displays. It is an anti-glare, dust-proof, vandal-proof and IP65 front frame waterproof high brightness touch monitor. Also, full sizes (7’’-43’’) can be offered.
High Brightness Touch Monitor Specifications
| Complete Machine |
| Model No. | KOT-0320U-CA4PH (P/N:KOT-320P-013) |
| Series | OT |
| Display Type | 16:9 Ratio 32" TFT-LCD |
| Active Area | 700.6*395.1 (mm) |
| Monitor Dimensions (W*H*D) | 769*463.5*58.6 (mm) |
| Suggested Resolution | 1920x1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel | 1500cd/m2 |
| With Touch Monitor | 1250cd/m2 |
| Response Time (Typ.) | 6ms |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 89°/89° |
| Vertical(up/down) | 89°/89° |
| Contrast Ratio (Typ.) | 4000:1 |
| Video Input | VGADVIHDMI |
| Frequency (H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick Display voltage: DC 24V/ 5A Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | -15～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | 30,000 Hours |
| LED Back Light Life (Typ.) | 30,000 Hours |
| Mount Interface | 1.VESA 400*400 mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Touch Screen |
| Touch Type | 32" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
NOTE :
① The display SPEC. are adjusted according to the selected LCD screen and touch screen
② The support system is adjusted according the specific system and version.

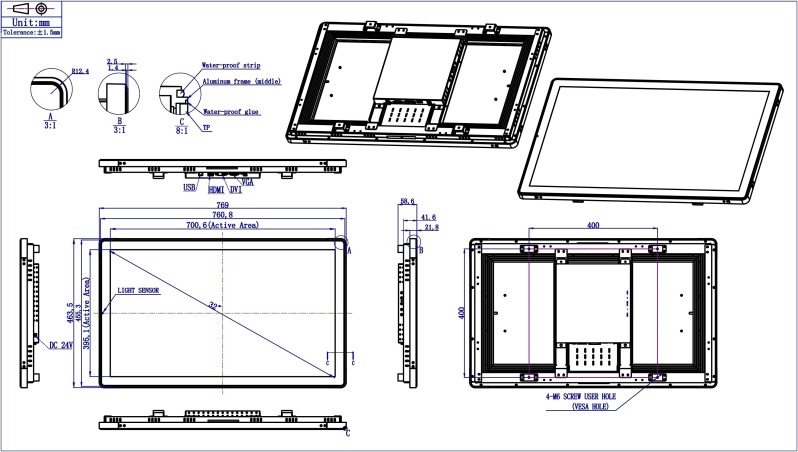

High Brightness Touch Monitor Mechanical Dimensions

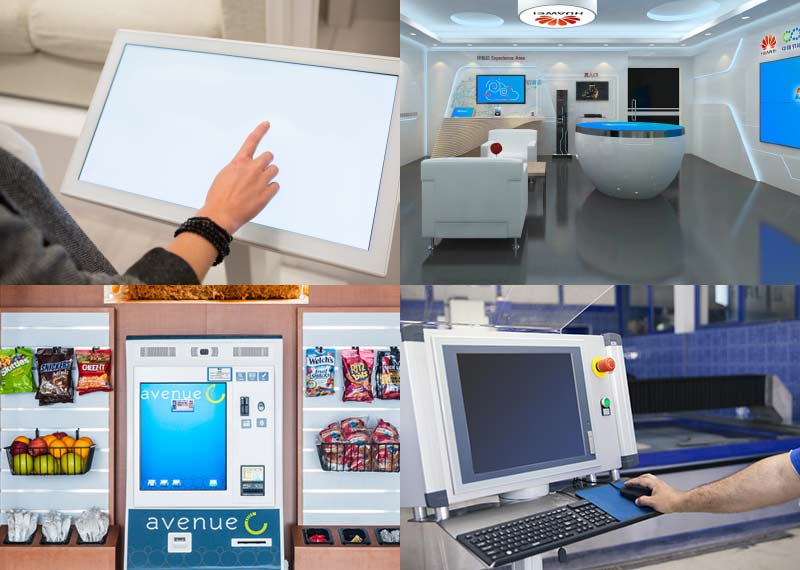

Applications
High Brightness Touch Monitor are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us?
1. Quality products: All our products have passed strict quality inspection by the quality department before shipment.
2. Competitive pricing: With a strong supply chain, our products’ prices are very competitive.
3. Timely delivery: We have raw materials in stock all year round, the goods can be produced and sent out quickly.
4. Responsive Customer Service: Professional after-sales team at any time to provide services to customers.
FAQ:
1. What package do you provide for the high brightness touch monitor?
Our package usually is carton.
2. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.
3. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
4. Do you give any discount for the high brightness touch monitor?
We will do utmost to support you with the competitive price, also good service will be offered.
Product Tags:
|
|
Anti Vandal High Brightness 32 Inch Touch Monitor 16:9 Ratio Anti Glare Images
|
